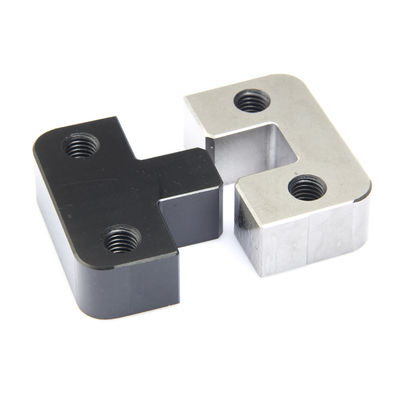

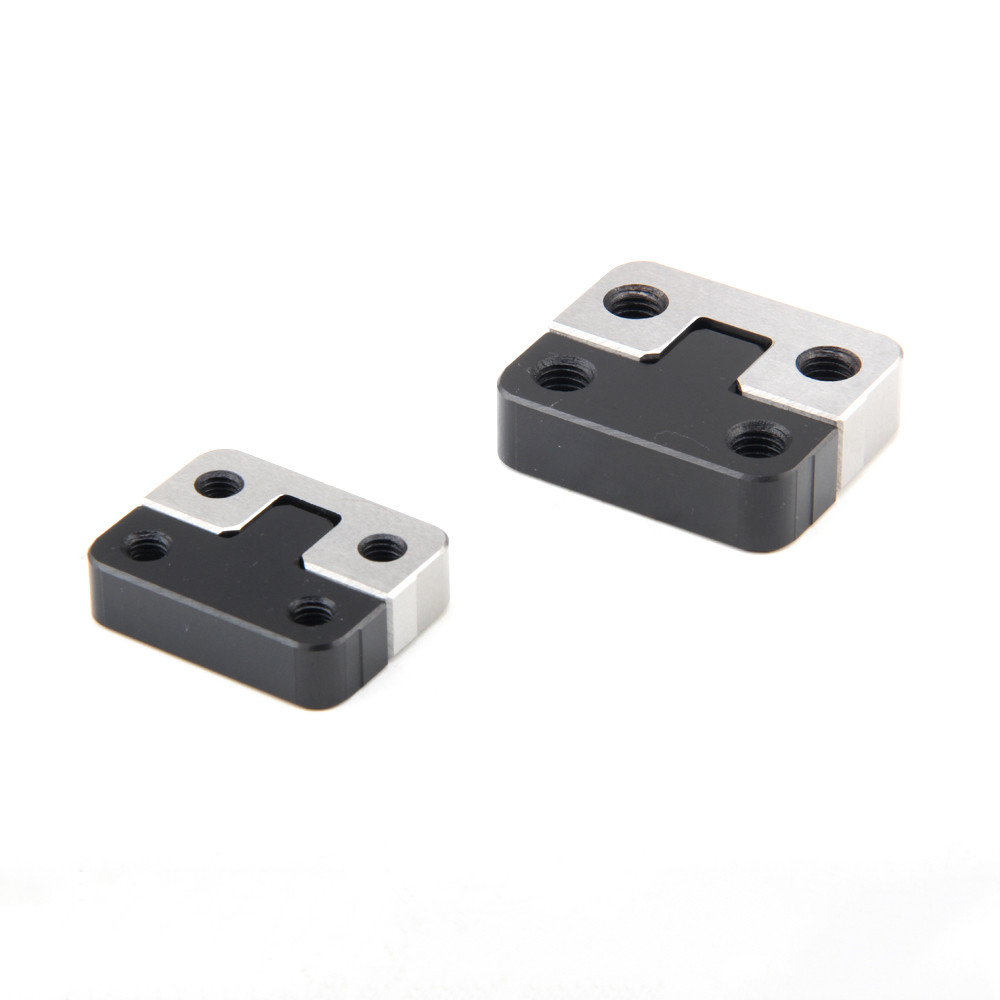

BT-B . E1308 56 HRC Mould Side Lock High Temperature Resistance
| Place of Origin | China |
|---|---|
| Brand Name | BAITO |
| Certification | ISO9001 |
| Model Number | BT-B . E1308 |
| Minimum Order Quantity | 1 |
| Price | $8-$20 |
| Packaging Details | Packed by sponge with plastic bag, Outpacking:wooden box or upon request. |
| Delivery Time | 8-10workdays |
| Payment Terms | T/T |
| Supply Ability | 30000 Piece/Pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Material | 1.2162 | Hardness | About 56 HRC |
|---|---|---|---|
| Product Name | Mold Interlock BT-B . E1308 | Application | Plastic Injection Mold |
| Product | Vehicle Mould | Mould Base | Meusburger , Progressive, Customed, LKM, HASCO |
| Related Keywords | Slide LockCentering Interlocks, Interlock , Hasco Normal, Standard Mold Parts, Mold Components | ||
| High Light | ISO9001 Mould Side Lock,56 HRC Mould Side Lock,56 HRC Side Lock |
||
Product Description
Plastic mold components Customized material / coating Mold interlock BT-B. E1308 Slide lock
| Product Materaial: | Steel |
| Product Name | Slide lock/ mold interlock/ locking block |
| Custom made | Yes |
| Supply Ability | Supply Ability 1000000 Piece/Pieces per Year |
| Feature | High temperature resistance |
Packaging & Delivery&shipment
Packaging Details Plastic bag or box with foam , with carton or large wooden box
Port Shenzhen
Shipping By sea, By air, By DHL, UPS, Fedex, TNT & etc
Product feature
1.High-precision top lock for space-saving
2.Integrated collision protection through lateral clearance
3.Low friction due to W-C:H coating
4.size, material, coated can customize.
Main products
Special mold parts ( -help you save money and time)
Custom machining parts ( -help you save money and time)
Date mark insert ( -annual production is 1 million pcs)
Air poppet valve ( -ultra-precision)
Mould latch lock
Mould slide units
Wear plate and guide rails(- fast delivery time)
Slide core units
Mold interlocks(- popular products)
Sprung core(- popular products)
Mould lifter
Ejector pin and sleeve
Sprue bushing and Locating ring
Mould spring
Mould stop pin
Mould coupling
Hydraulic cylinder
Collapsible Core(- the minimum diameter which we can produce is 6mm)
Product details
BT-B. E1308
| R | M | b1 | b2 | h1 | h2 | h3 | h4 | h5 | h6 | s | b |
| 4 | M 5 | 10 | 26 | 17 | 14 | 11 | 6 | 8.5 | 7 | 10 | 40 |
| 5 | M 6 | 12 | 30 | 22 | 17 | 12 | 7 | 11 | 8.5 | 12 | 46 |
| 6 | M 6 | 14 | 34 | 27 | 22 | 16 | 10 | 13.5 | 11 | 16 | 50 |
| 8 | M 8 | 18 | 40 | 36 | 27 | 20 | 14 | 18 | 13.5 | 20 | 60 |
| 10 | M10 | 24 | 50 | 40 | 36 | 25 | 18 | 20 | 18 | 25 | 76 |
Installation tips:
